Grando BEJ-3204UV Industrial UV Roll to Roll Printer

uV roll to Roll Printer

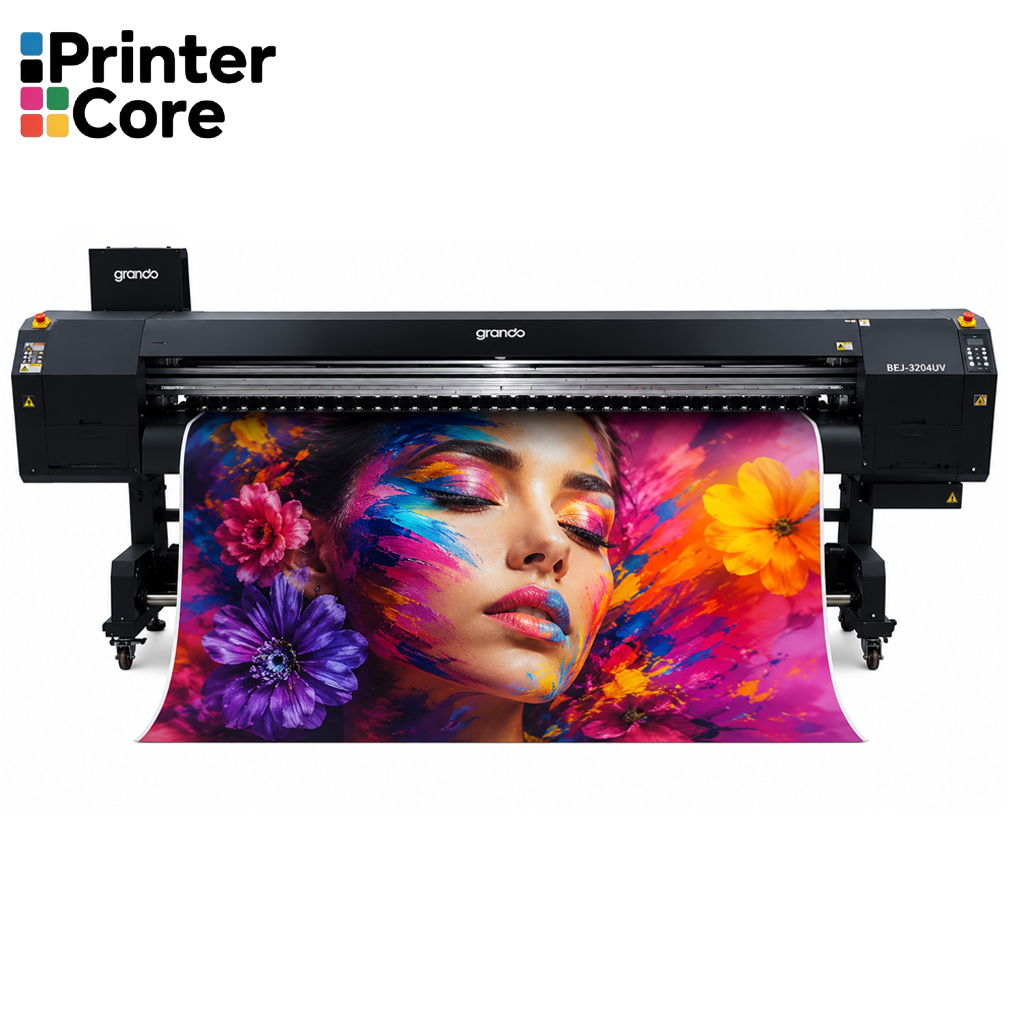

10ft Grando BEJ-3204UV Industrial UV Roll to Roll Printer

High-Speed 4 Head Industrial UV Printing Machine for Commercial Production

The Grando BEJ-3204UV Industrial UV Roll to Roll Printer is a high-speed industrial UV printing machine designed for professional multilayer graphics production, UV sticker printing, wallpaper printing, backlit displays, branding applications, and large-scale commercial advertising production.

“We provide best quality UV R2R Printers in cost effective price”

Top Features of the EPSON I3200E1 Eco Solvent Printer

🔬 i3200U1 Precision 3pl drops, 2400 dpi sharpness
⚡ Fast Prints Up to 400-800 sq.ft/hr speed
🖨️ Wide Format 60 Inch print width, adjustable height
💧Printing Options Color/Color+White
🧾Multi-Media Support – Vinyl, flex, canvas, PET & more

GRANDO UV ROLL TO ROLL *{ margin:0; padding:0; box-sizing:border-box; } body{ background:#f4f6fb; padding:20px; font-family:'Poppins',sans-serif; } /* TABLE WRAPPER */ .pc-table-wrapper{ width:100%; overflow-x:auto; } /* TABLE */ .pc-spec-table{ width:100%; min-width:700px; border-collapse:collapse; background:#ffffff; color:#000; font-size:14px; } /* BORDER */ .pc-spec-table, .pc-spec-table td{ border:1px solid #000; } /* TITLE */ .pc-main-title{ text-align:center; font-size:28px; font-weight:800; padding:14px; background:#ffffff; } /* ALTERNATIVE ROW COLORS */ .pc-spec-table tr:nth-child(odd){ background:#d9e4f5; } /* CELL STYLE */ .pc-spec-table td{ padding:8px 10px; vertical-align:middle; word-break:break-word; } /* COLUMN WIDTH */ .pc-label{ width:28%; font-weight:700; } .pc-sub-label{ width:20%; font-weight:700; } .pc-value{ width:52%; } /* STRONG TEXT */ .pc-value strong{ font-weight:800; color:#00264d; } /* HOVER EFFECT */ @media(min-width:769px){ .pc-spec-table tr:hover td{ background:#edf3ff; transition:0.2s ease; } } /* TABLET */ @media(max-width:768px){ body{ padding:12px; } .pc-spec-table{ width:100%; min-width:auto; font-size:12px; } .pc-main-title{ font-size:22px; padding:12px 8px; } .pc-spec-table td{ padding:7px 6px; } } /* MOBILE */ @media(max-width:550px){ .pc-spec-table{ font-size:11px; } .pc-main-title{ font-size:18px; } .pc-spec-table td{ padding:6px 4px; } .pc-label{ width:32%; } .pc-sub-label{ width:24%; } .pc-value{ width:44%; } } /* EXTRA SMALL */ @media(max-width:400px){ body{ padding:8px; } .pc-main-title{ font-size:16px; } .pc-spec-table{ font-size:10px; } .pc-spec-table td{ padding:5px 3px; } }

GRANDO UV ROLL TO ROLL
MODEL		PC-GD3204UV
Printing Technology		Drop-On-Demand Grayscale Piezoelectric Inkjet
Print Head		Epson I3200U1
Number Of Print Head		Four
Media	Thickness	1.5mm
	Size	3230mm
	Handling	Suction and Blower
	Weight	80Kg
Printing Size		3200mm
Curing System		UV LED ( Water Cooling )
Ink	Type	UV LED Curable Inks
	System	Bulk Ink Refillable System
	Colors	CMYK
Distance Accuracy		Error of less than 0.3% of distance travelled or 0.3mm whichever is greater
Connectivity/Interface		LAN 3.0
Power Requirement		AC 220V, 50Hz, 30A
Rip Software		RIIN Software/MainTop/PhotoPrint
Machine Dimension and Weight		461x99x77 cm, 796Kg
Printhead Control		Temperature and Voltage Control by Waveform Operations
Environment	Power ON	Temperature 20 degree to 28 degree and Humidity 40% to 60%
Environment	Power OFF	Temperature 5 degree to 40 degree and Humidity 20% to 80%
Passes/DPI		Speed
Printing Speed	4 Pass 360x720	40 Sqm/Hr
	6 Pass 360x1800	30 Sqm/Hr
	8 Pass 360x1440	20 Sqm/Hr
Material		Vinyl, Flex, Backlite, Canvas, Rexine, Transparent Vinyl, Radium etc.
Operating System		Window 7/11 with Gigabyte Speed
Power Consumption		1500 W
Features		Anti-Collision System / Ink Alarm

UV Sticker Printing : premium branding stickers, labels
Backlit Film Printing : Advertising displays & Signboards
Window Graphics Printing : Retail & promotional branding
Wallpaper Printing : Customized Interior Design
Commercial Promotional Graphics
Subway & transit Advertising
Soft Film Printing
Indoor Signage Production
Retail Display Graphics
Customized commercial printing applications

Warranty and Service

1-Year Warranty on printer Board
1-Year On-site Technical Support
Pan-India delivery & installation
Training & onboarding with each purchase

Industries Served

Advertising Agencies
Signage Businesses
Branding Companies
Commercial Print Shops
Interior Decor Businesses
Retail Branding Companies
Vehicle Graphics Studios
Promotional Printing Businesses
